• Year
  • 1965 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 325367

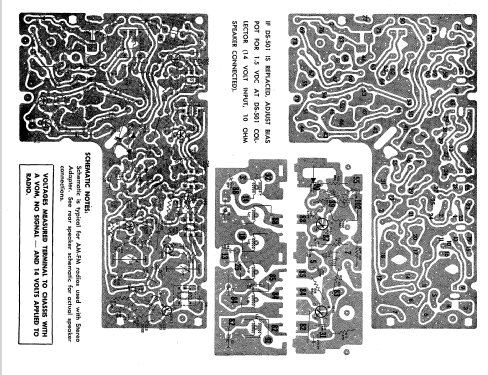

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 262/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 986118 - General Motors of Canada;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • The General Motors model 986118 is an 11-transistor AM/FM car radio used in 1965 Corvair model cars.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
