Scaler (Frequenz Teiler) 1157-B

• Country
• United States of America (USA)

• Manufacturer / Brand
• General Radio Company; Cambridge (MA)

• Year
• 1969

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 153790

• • alternative name: GenRad

• Picture

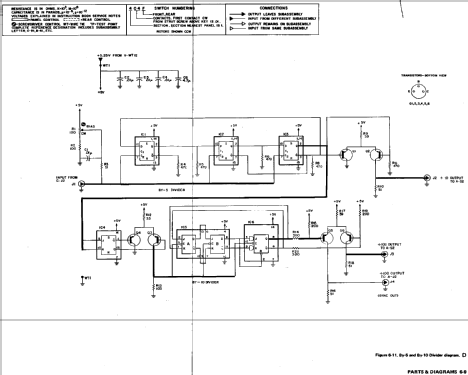

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100 - 125; 200 - 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Scaler 1157-B - General Radio Company;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 220 x 100 x 315 mm / 8.7 x 3.9 x 12.4 inch

• Notes
• Frequenz Teiler 10:1 / 100:1 von 1–500 MHz; Empfindlichkeit: 0,3–7 V.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
