Signal generator 605-B All Versions

General Radio Company; Cambridge (MA)

Data
Forum
Pictures
Collections

  • Year
  • 1938 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 136362
    • alternative name: GenRad

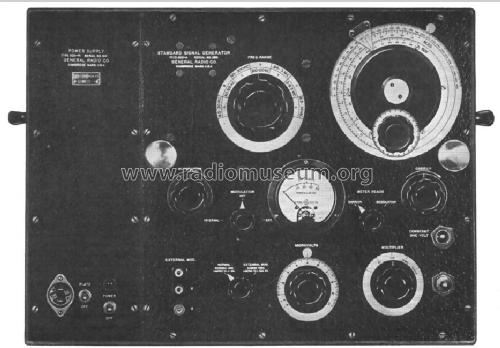

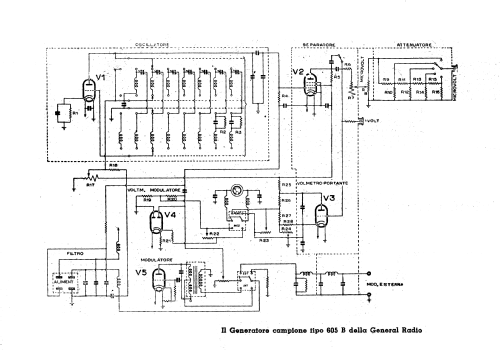

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Signal generator 605-B [All Versions] - General Radio Company;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 600 x 400 x 280 mm / 23.6 x 15.7 x 11 inch
  • Notes

  • Similar to model 605A, with minor differences. Slow motion dial, 0.1 % division; 1 V constant output jack.
    Frequency range from 9.5 kHz to 30 MHz in 7 sectors.
    Either AC and battery operated versions were available. The AC powered version was available for various line frequencies and voltages, and was supplied with a built-in voltage regulated power supply. Plug in power supplies.

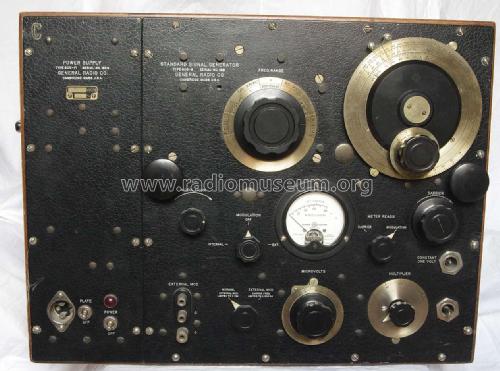

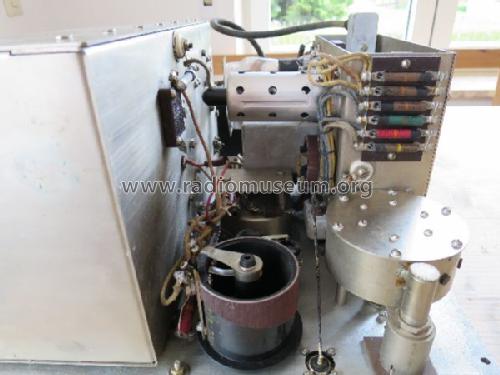

    The wooden case is copper-shielded inside.



  • Net weight (2.2 lb = 1 kg)
  • 31 kg / 68 lb 4.5 oz (68.282 lb)
  • Price in first year of sale
  • 415.00 $
  • Literature/Schematics (1)
  • Electronics, January 1938
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
