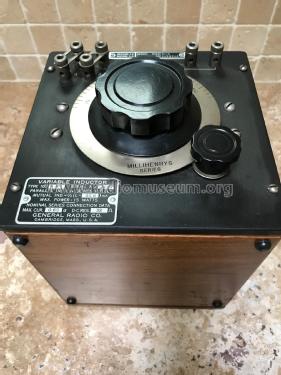

• Model: Variable Inductor 107M - General Radio Company;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 6.5 x 8.75 x 6.5 inch / 165 x 222 x 165 mm

• Notes

• The General Radio 107M is a variable inductor. The model consists of two coils, a rotor and a stator, which are mounted concentrically.  As the position of the rotor is changed, the coupling between the two coils changes, thus causing the inductance to vary.  The total inductance range is over 25:1. The maximum power is 15W.

  Separate terminals are brought out for both the rotor and the stator so that they may be connected in series or in parallel as a self-inductor, or used separately as a mutual inductor.

  The 107 was available in 5 different versions, each covering a different range of inductances:

  Model	Mutual Inductance	DC Resistance	Self-Inductance (Series)	Self-Inductance (Parallel)
  107-J	0 - 10.8 uh	0.05 ohms	8 - 50 uh	2 - 12.5 uh
  107-K	0 - 110 uh	0.38 ohms	80 - 500 uh	20 - 125 uh
  107-L	0 - 1.1 mh	4.6 ohms	0.8 - 5 mh	0.2 - 1.25 mh
  107-M	0 - 11 mh	32 ohms	8 - 50 mh	2 - 12.5 mh
  107-N	0 - 110 mh	410 ohms	80 - 500 mh	20 - 125 mh



• Net weight (2.2 lb = 1 kg)
• 5 lb (5 lb 0 oz) / 2.270 kg
