• Country
• United States of America (USA)

• Manufacturer / Brand
• General Television and Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42916

• • Brand: General

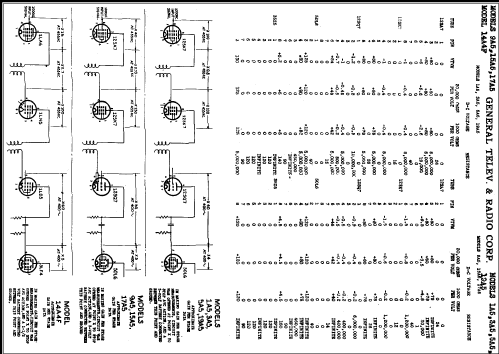

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.56 inch = 11.6 cm

• Material
• Wooden case

• from Radiomuseum.org

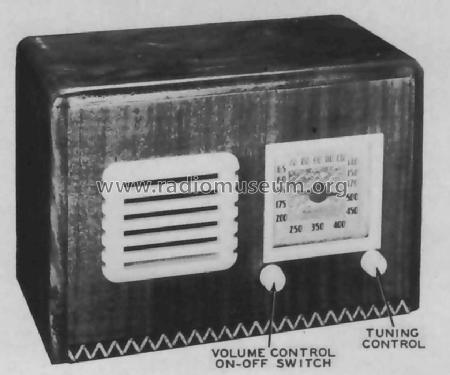

• Model: 17A5 - General Television and Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• See also Rider's Perpetual, Volume 19

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Folder 465-22 date 10-46)

• Other Models

• Here you find 106 models, 46 with images and 70 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from General Television and Radio Corp.; Chicago, IL
