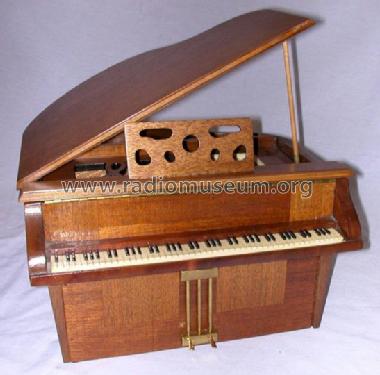

534 "Grand Piano" s-e-tubes

• Country
• United States of America (USA)

• Manufacturer / Brand
• General Television and Radio Corp.; Chicago, IL

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42949

• • Brand: General

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 534 "Grand Piano" [s-e-tubes] - General Television and Radio

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 13.37 x 7 x 11 inch / 340 x 178 x 279 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (7th Edition) (page 129)
