14T007 "M" Line
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 308827
-
- Brand: Musaphonic

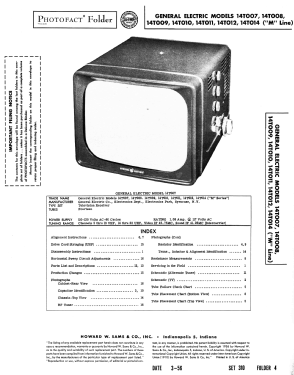

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 14T007 "M" Line - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
General Electric model 14T007 is a 14” b/w TV with US standard VHF tuner channels 2
thru 13, and 14 thru 83 UHF. Equipped with VHF-tuner RJX-077, UHF-tuner-RUX013 and picture tube 14QP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 310 Folder 4 dated 3-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
