- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1950/1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 129735
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AB4 6BC5 12AT7 6BC5 6BC5 6BC5 12AT7 6AU6 6AU6 6AL5 6SQ7 25L6GT 6SL7GT 12SN7 12AU7 6AL5 12SN7GT 25BQ6 25W4GT 1X2 14CP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 14T2 - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.25 x 18.25 x 20.19 inch / 438 x 464 x 513 mm
- Notes
-
General Electric model 14T2 is a 14” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF- tuner RJX-043 and picture tube 14CP4, mahogany cabinet.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)

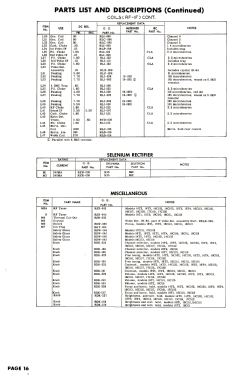

- Photofact Folder, Howard W. SAMS (Set 123 folder 4 dated 1-51)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
