15 Transistor P975D

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 215587
    • Brand: Musaphonic

 Technical Specifications

  • Number of Transistors
  • 15
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / Either External DC Adapter or 4 x AA 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 15 Transistor P975D - General Electric Co. GE;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 5 x 7.5 x 2 inch / 127 x 191 x 51 mm
  • Notes

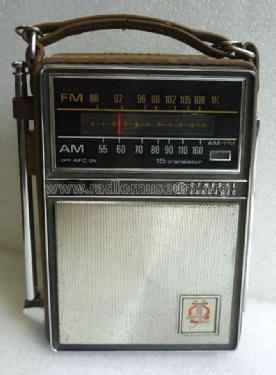

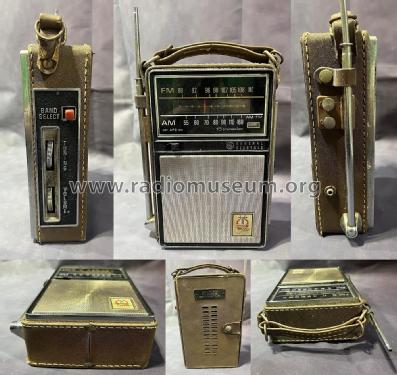

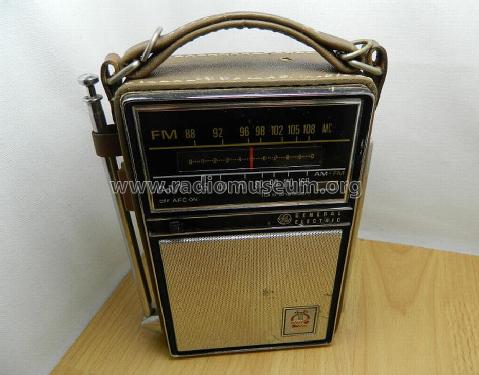

  • General Electric Portable AM/FM Radio Model 15 Transistor P975D.
    AFC, Telescopic antenna.
    Speaker 12 Ohms 1 watt.
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
