- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349269
-
- Brand: Musaphonic

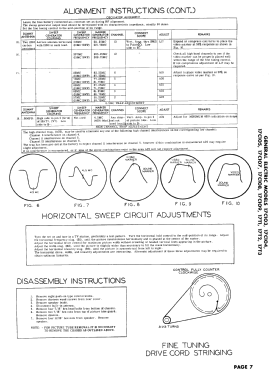

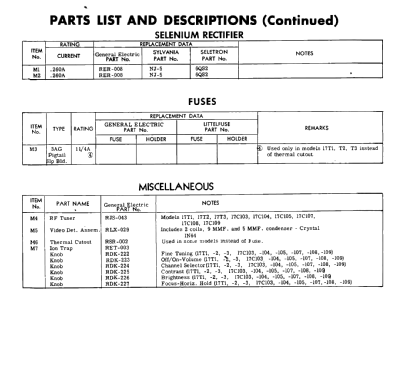

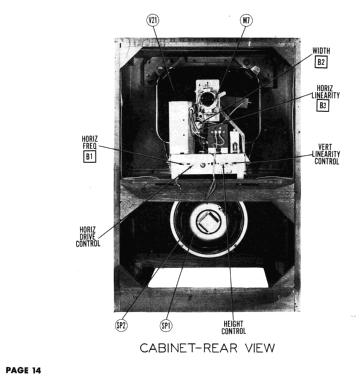

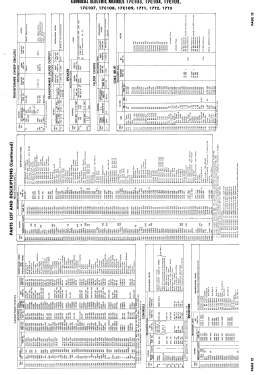

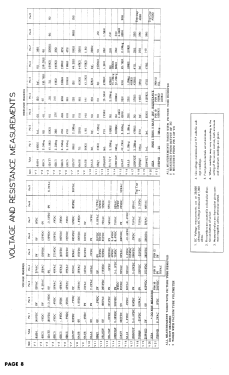

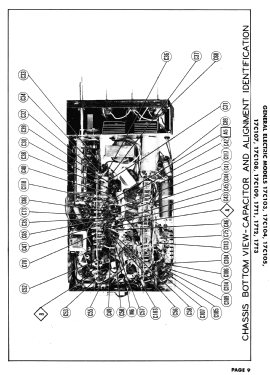

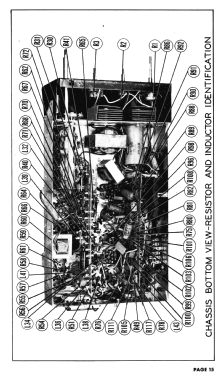

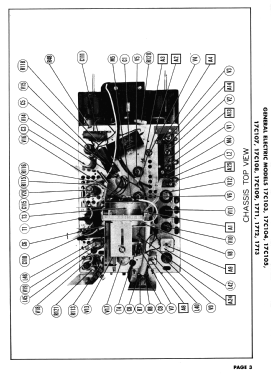

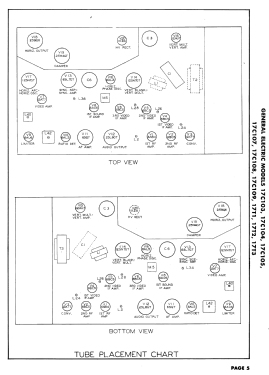

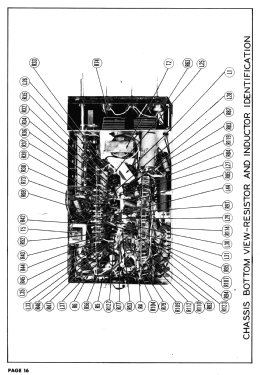

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AB4 6BC5 12AT7 6BC5 6BC5 6BC5 12AT7 6AU6 6AU6 6AL5 6SQ7 25L6GT 6SL7GT 12SN7GT 12AU7 6AL5 12SN7GT 25BQ6 25W4GT 1X2A or 1X2 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17C107 - General Electric Co. GE;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
General Electric model 17C107 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner RJS-043 and picture tube 17BP4A.
- Literature/Schematics (1)

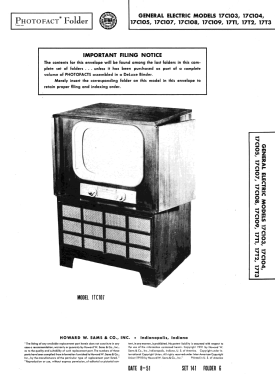

- Photofact Folder, Howard W. SAMS (Set 141, folder 6, dated 8-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
