• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 272503

• • Brand: Musaphonic

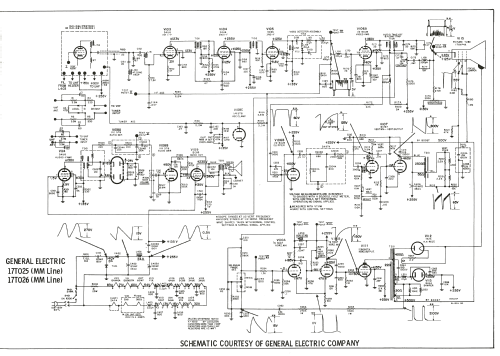

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 3BC5 5BE8 or 5CL8 3AU6 3AU6 3CB6 6AU8 3AU6 5T8 5T8 12CA5 5T8 6CM7 6CG7 12BQ6GTA 1X2 12AX4 17AVP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 17T025 MM Line - General Electric Co. GE;

• Notes

• The GENERAL ELECTRIC model 17T025 MM-Line is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with tuner RJX-086 or RJX-087 and picture tube 17AVP4A.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 342 Folder 7 Dated 1-57)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 329 Folder 18-S dated 9-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
