• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1946–1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41858

• • Brand: Musaphonic

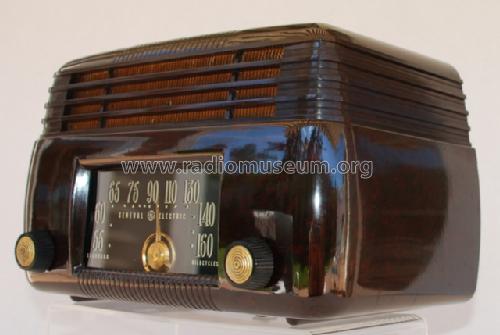

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

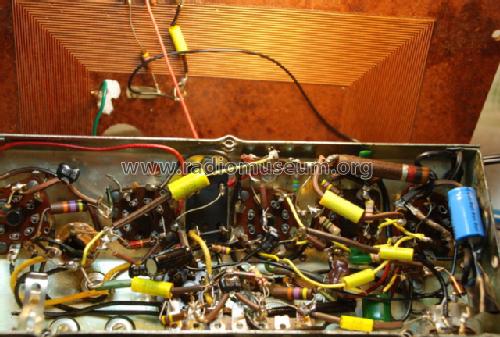

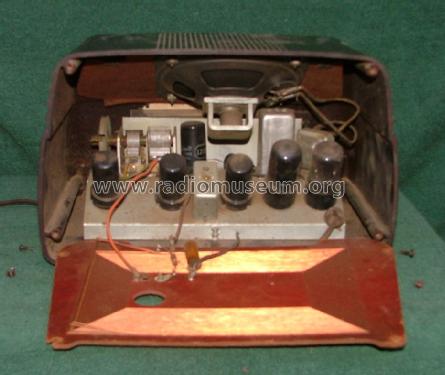

• Number of Tubes
• 6

• Valves / Tubes
• 12SG7 12SA7 12SK7 12SQ7 35L6GT or 35L6G 35Z5GT or 35Z5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC: 25, 50-60Hz, 105-125V or DC: 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1.2 W (1.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 200 - General Electric Co. GE;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 7.5 x 7.5 inch / 305 x 191 x 191 mm

• Notes

• The General Electric 200 is an AC/DC operated 6 tube BC band receiver.  The BC band frequency tuning range is 540 to 1600 kHz.  Has built-in loop antenna.

  The following models share the same chassis and schematic:

  Model	Cabinet
  200	Brown plastic
  201	Ivory plastic (Plascom)
  202	Rosewood Brown plastic (Plascom)
  203	Walnut wood
  205	Blonde wood
  205M	Maple wood

  Do not clean dial glass on printed side. Even water will destroy the printing.

• Net weight (2.2 lb = 1 kg)
• 7.4 lb (7 lb 6.4 oz) / 3.360 kg

• External source of data
• Ernst Erb - A Flick of the Switch 1930-1950

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (General Electric Section - pages 18-19, 18-20. Also Riders 20, Changes Section - page 20-4)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 8 folder 468-15 date 11-46)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (February 1947 page 56.)

• Literature/Schematics (3)
• Beitman Radio Diagrams, Vol. 07, 1947 (Page 50)

• Literature/Schematics (4)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 109)

• Other Models

• Here you find 2919 models, 2142 with images and 2045 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
