• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 147820

• • Brand: Musaphonic

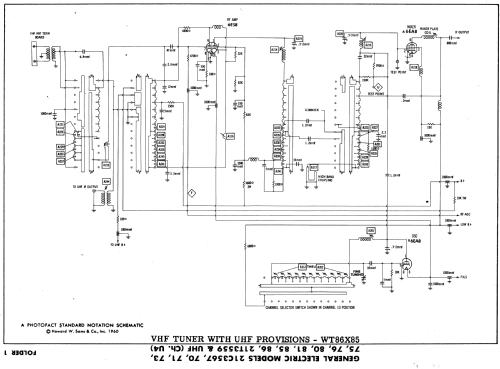

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6ES8 6EA8 6BZ6 6BZ6 6EW6 6AW8A 6AQ5A 6AU6A 6T8A 6AQ5A 6BY6 6DN7 6CG7 6DQ6A 6AX4GTB 1J3 21ESP4

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 128 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 21C3586 Ch= U4 - General Electric Co. GE;

• Notes
• Channels 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 483 folder 1 date 5-60 features the General Electric models 21C3567, 21C3570, 21C3571, 21C3573, 21C3575, 21C3576, 21C3580, 21C3581, 21C3585, 21C3586 and 21C3559 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 483 folder 1 date 5-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
