- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 284914
-
- Brand: Musaphonic

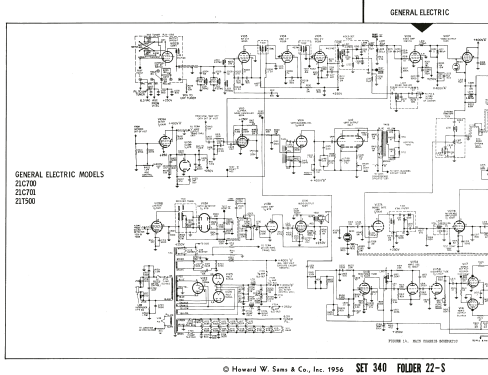

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6CB6 6CB6 6CB6 12BY7 6W6 6U8 6U8 6BY6 6AU8 6BL7 6T8 6AQ5 12AU7 6CD6GA 6CD6GA 6AX4GT 6AX4GT 1V2 1B2 5U4GA 5U4GA 5U4GA 6BV8 6BV8 6AU8 21AXP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle 110-120 Volt
- from Radiomuseum.org
- Model: 21T500 - General Electric Co. GE;
- Notes
-
GENERAL ELECTRIC MODEL 21T500 is a 21" b/w TV with picture tube 21AXP22A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 340 Folder 22-S dated 12-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
