• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41915

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 or 12SA7 12BA6 12AV6 or 12SQ7 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117V =110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

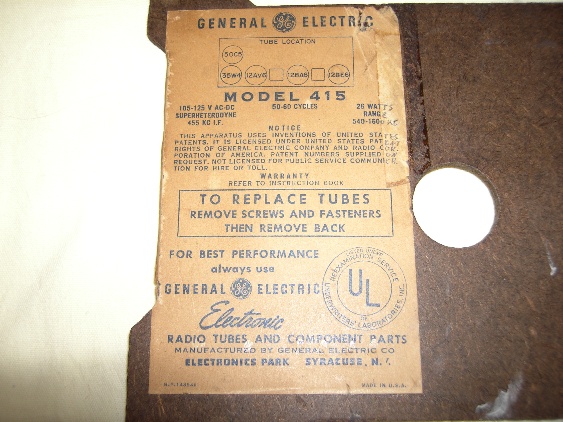

• Model: 415 [12SK7 tube] - General Electric Co. GE;

• Shape
• Tablemodel, with any shape - general.

• Notes

• General Electric model 415 is an AC/DC oprated AM Superheterodyne receiver.
  Color: Ivory; similar models: 414 Mahogany; #416 Maroon; #430 wooden cabinet; Riders shows a different tube lineup.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 12, 1952

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 175, folder 11, dated 8-52)
