• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41923

• • Brand: Musaphonic

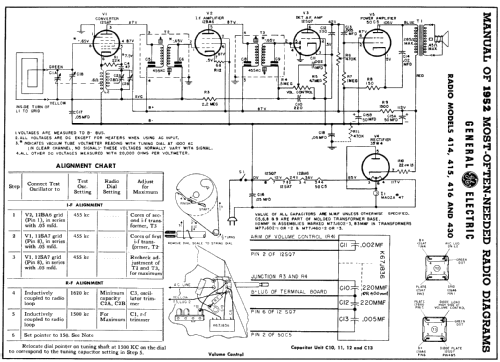

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 or 12SA7 12BA6 12AV6 or 12SQ7 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117V =110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.75 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 430 - General Electric Co. GE;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 7 x 6.25 inch / 318 x 178 x 159 mm

• Notes

• General Electric model 414 is an AC/DC oprated AM Superheterodyne receiver.
  Similar Models (but all Plastics!): #414 Mahogany; #415 Ivory; #416 Maroon;

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 12, 1952

• Literature/Schematics (2)

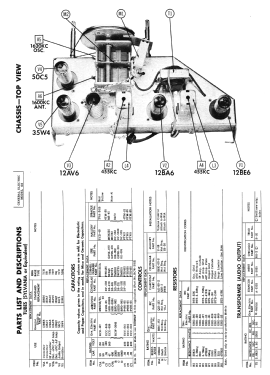

• Photofact Folder, Howard W. SAMS (Set 175, folder 11, dated 8-52)

• Other Models

• Here you find 2916 models, 2140 with images and 2042 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
