- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90391
-
- Brand: Musaphonic

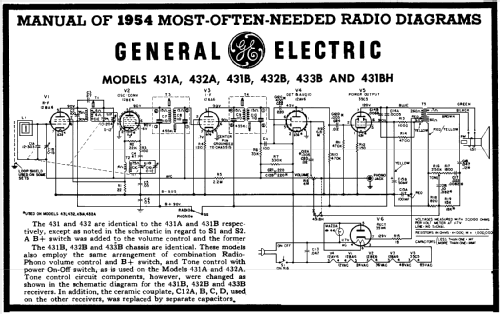

Beitman

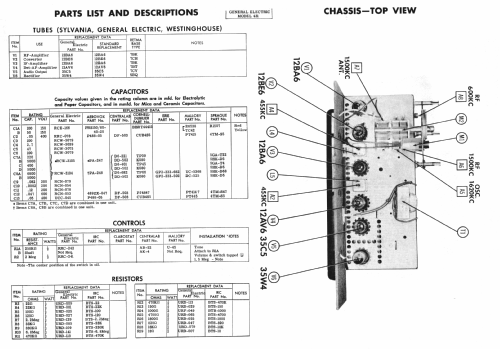

Picture from General Electric datasheet

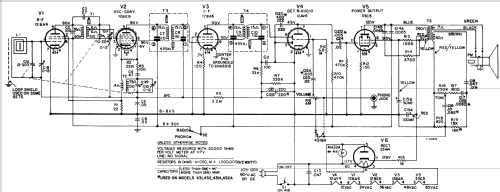

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Power out
- 0.75 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 431BH - General Electric Co. GE;
- Shape

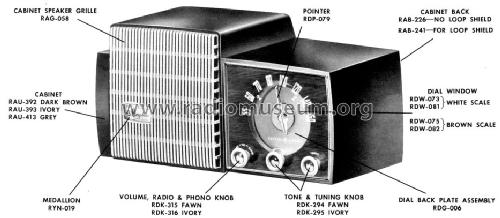

- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 14.25 x 7.625 x 7 inch / 362 x 194 x 178 mm
- Notes
- Color = Dark Brown.
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 14, 1954
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
