• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90371

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BJ6 12AT7 12AU6 12BA6 12AU6 19T8 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

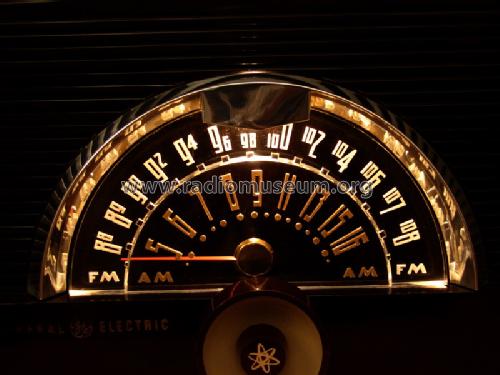

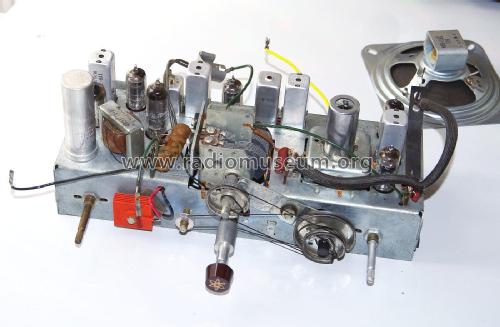

• Model: Atomic 440 - General Electric Co. GE;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.25 x 8 x 8 inch / 337 x 203 x 203 mm

• Notes
• Selenium Rectifier

• Net weight (2.2 lb = 1 kg)
• 9 lb (9 lb 0 oz) / 4.086 kg

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 84.)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
