- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1946–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 41931
-
- Brand: Musaphonic
SAMS Photofact
kijiji ad 1077388915
kijiji ad 1077388915
kijiji ad 1077388915
kijiji ad 1077388915

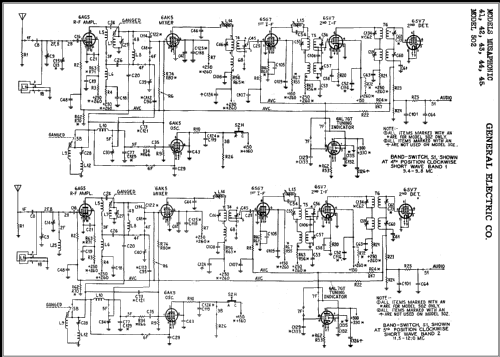

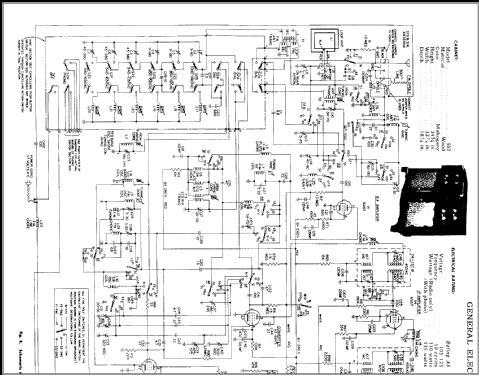

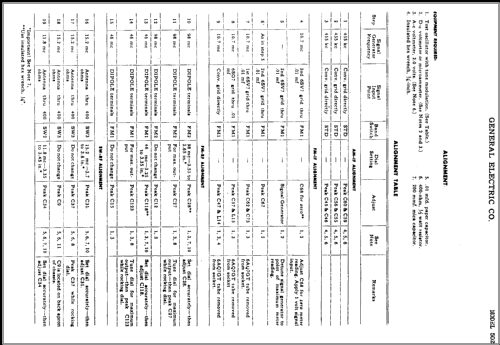

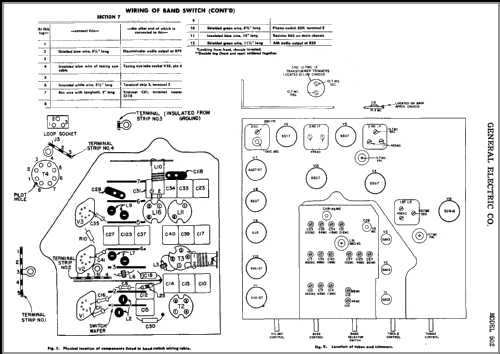

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

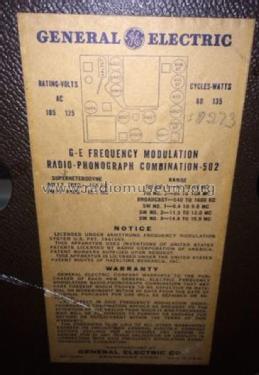

- Model: 502 - General Electric Co. GE;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 33.9 x 34.8 x 18.3 inch / 861 x 884 x 465 mm
- Notes
-
Operating Frequencies:
BC 540 to 1600kc
SW1 9,4 to 9.8 mc
SW2 11,5 to 12 mc
SW3 14,8 to 15,5 mc
FM1 42 to 49 mc
FM2 88 to 108 mc
Record Changer: General Electric Model P4.
Color= Mahogany.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 35, Folder 9)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (July 1947 page 11.)
- Literature/Schematics (3)
- General Electric Folder 1000M-PUB.NO. 175-59 for 1947.
