510

• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41937

• • Brand: Musaphonic

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12BA6 12SQ7 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (1.75 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 510 - General Electric Co. GE;

• Shape

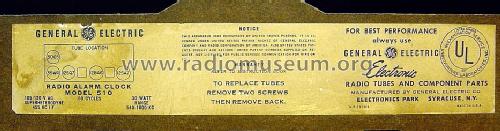

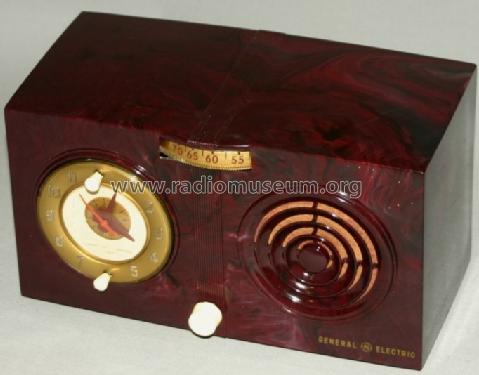

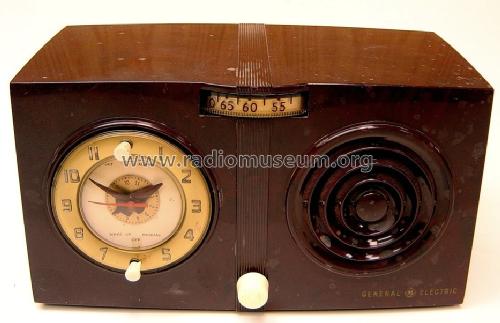

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 11.4 x 6.3 x 5.6 inch / 290 x 160 x 142 mm

• Notes

• The General Electric Model 510 is an AC Operated 5 Tube AM Receiver with Electric Clock. The BC band frequency tuning range is 540 to 1600kHz. Has built-in loop antenna. Cabinet color is Brown.

  The following models use the same schematic and cabinet:

  Model	Cabinet Color
  510	Brown
  511	Ivory (White)

• Price in first year of sale
• 29.95 USD

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

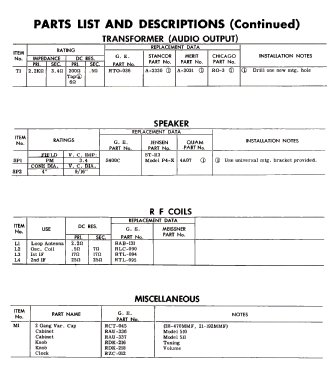

• Rider's Perpetual, Volume 21 = Copyright 1950 (Pages 43 to 46)

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 page 9)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 120 folder 7 dated 1-51)
