- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1949/1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104213
-
- Brand: Musaphonic
reconstructed label
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (1.75 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 511 - General Electric Co. GE;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 11.4 x 6.3 x 5.6 inch / 290 x 160 x 142 mm
- Notes
-
The General Electric Model 511 is an AC Operated 5 Tube AM Receiver with Electric Clock. The BC band frequency tuning range is 540 to 1600kHz. Has built-in loop antenna. Cabinet color is Ivory.
The following models use the same schematic and cabinet:
Model Cabinet Color 510 Brown 511 Ivory (White)

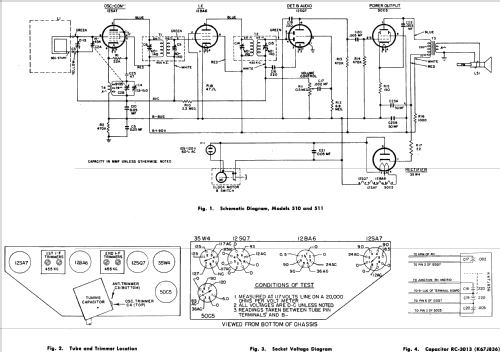

- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Rider's Perpetual, Volume 21 = Copyright 1950 (Pages 43 to 46)
- Literature/Schematics (2)

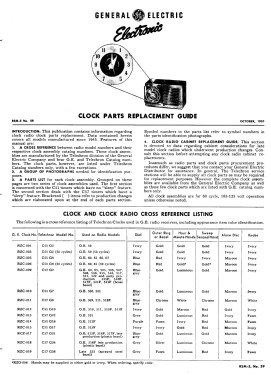

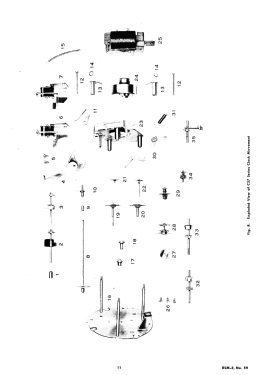

- General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 page 9)
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 120 folder 7 dated 1-51)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
