• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139716

• • Brand: Musaphonic

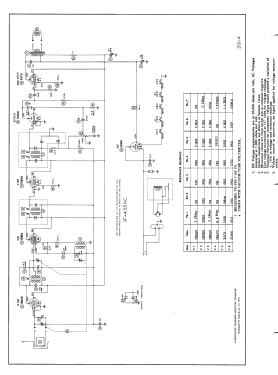

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 552 - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The General Electric 552 is an AC operated 6 Tube AM Receiver with Electric Clock. Has built in loop antenna,  Has AC utility outlet on rear of radio which is controlled from the clock. Cabinet color is pearl gray.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  551	Mottled Mahogany
  552	Pearl Gray



• Price in first year of sale
• 49.95 USD

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 4)

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 16)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
