62

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18641
    • Brand: Musaphonic

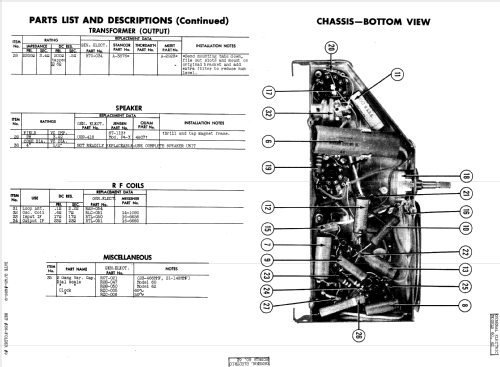

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 to 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.2 W (2 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 62 - General Electric Co. GE;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 10.5 x 6.2 x 5.4 inch / 267 x 157 x 137 mm
  • Notes

  • The General Electric Model 62 is an AC Operated 5 Tube AM Receiver with Electric Clock. The BC band frequency tuning range is 540 to 1600kHz. Has built-in loop antenna and connections for an external antenna. Cabinet color is Ivory.

    The following models use the same schematic and cabinet:

    Model Cabinet Color
    60 Mahogany
    62 Ivory

    There is also a completely different console model 60 from 1942!

    The radio also was available with 50Hz/115V and also available with 50Hz/240V for export to Europe.

  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
