• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1989 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107493

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

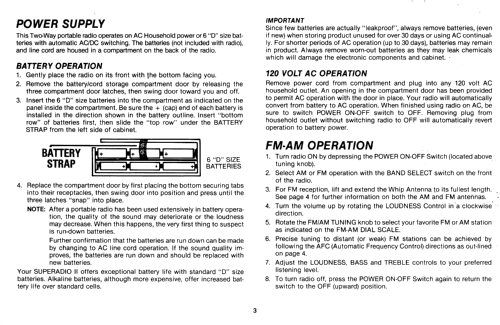

• Line / Batteries (any type) / 120 / D: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.7 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

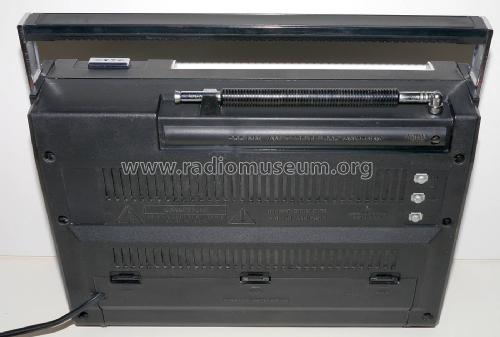

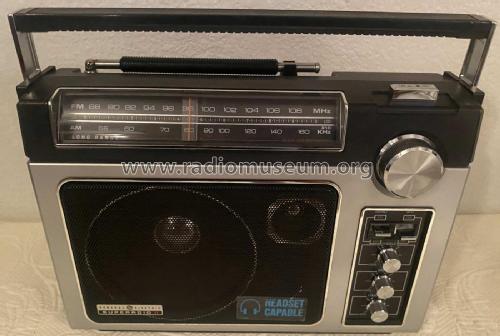

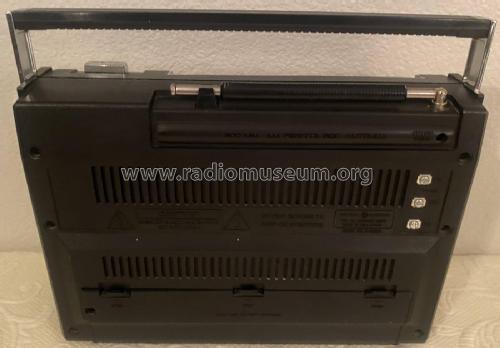

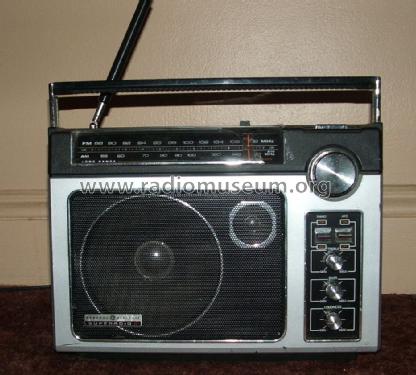

• Model: Superadio II 7-2885F - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.25 x 8.75 x 3.5 inch / 311 x 222 x 89 mm

• Notes

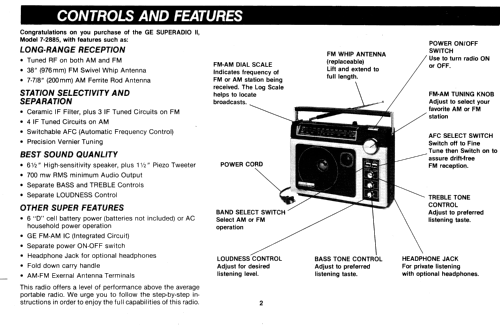

• The General Electric Superadio II, model 7-2885F, is a portable AC/battery operated AM/FM radio. The GE Superadio II excels at long-range reception and has the following features.

  • Tuned RF on both AM and FM
  • ​38 inch (976 mm) FM Swivel Whip Antenna
  • 7-7/8 inch (200 mm) AM Ferrite Rod Antenna
  • Ceramic IF Filter, plus 3 IF Tuned Circuits on FM
  • 4 IF Tuned Circuits on AM
  • Switchable AFC (Automatic Frequency Control)
  • 6.5 inch High-sensitivity speaker, plus 1.5 inch Piezo Tweeter
  • Separate BASS, TREBLE, and LOUDNESS Controls
  • Headphone Jack for optional headphones

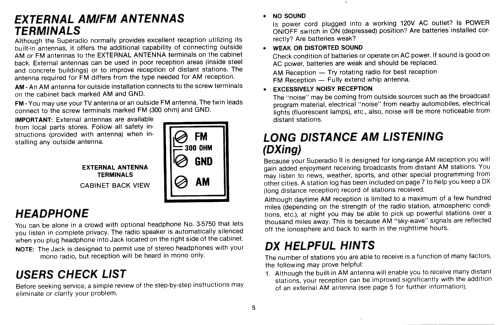

  • AM-FM External Antenna Terminals
  • Fold down carry handle

  3 W power consumption

  Made in Malaysia or China

• Net weight (2.2 lb = 1 kg)
• 5 lb 0 oz (5 lb) / 2.270 kg

• Price in first year of sale
• 59.95 USD

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
