• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219077

• • Brand: Musaphonic

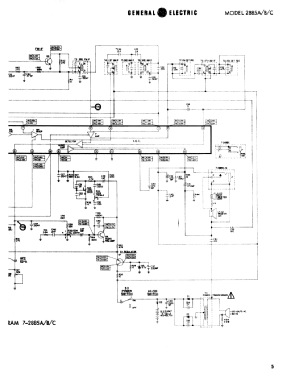

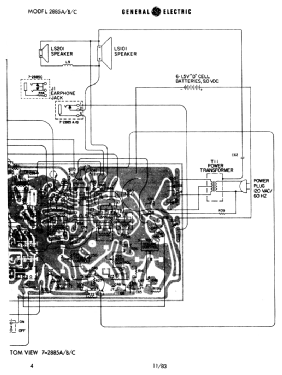

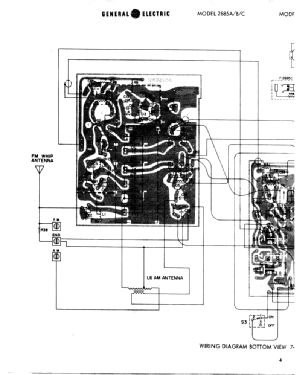

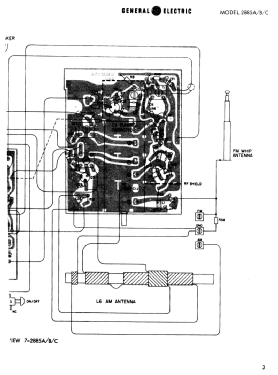

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120 / D: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.9 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Superadio II 7-2885C - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

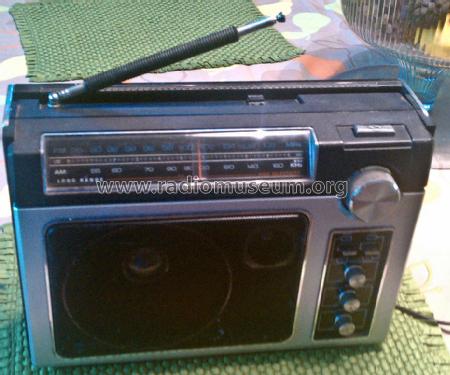

• General Electric AM-FM Portable Radio Model 7-2885C.
  Telescopic antenna, AFC, Bass- and Treble-Control.

  Made in Hong Kong

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
