• Year
  • 1956–1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82637
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 877 - General Electric Co. GE;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10.5 x 6.5 x 5 inch / 267 x 165 x 127 mm
  • Notes
  • The General Electric 877 is an AC/DC operated 5 tube BC band receiver.  The BC band range is 540 to 1600 kHz.  Has built-in loop antenna. Cabinet color is Pink.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    875 Mahogany
    876 Antique White
    877 Pink



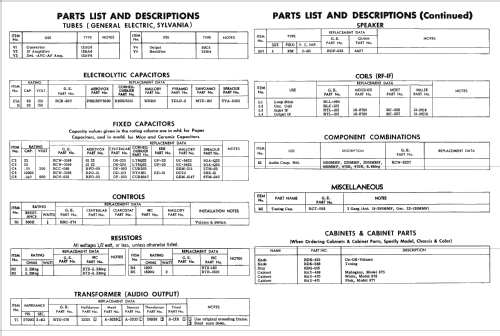

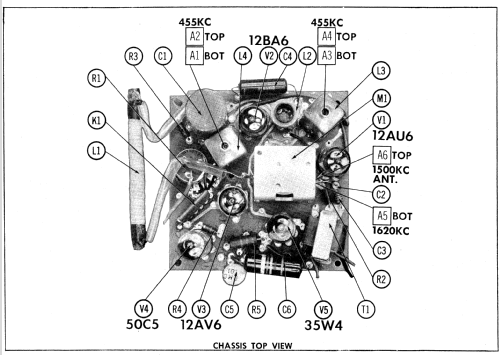

  • Circuit diagram reference

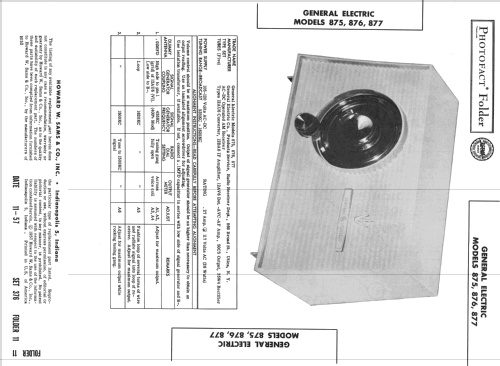

  • Beitman Radio Diagrams Vol. 17, 1957
  • Mentioned in
  • GE 1957/1958 Radios catalog
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
