- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81581
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 895 - General Electric Co. GE;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-

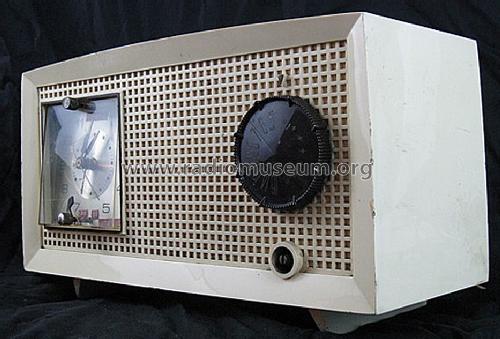

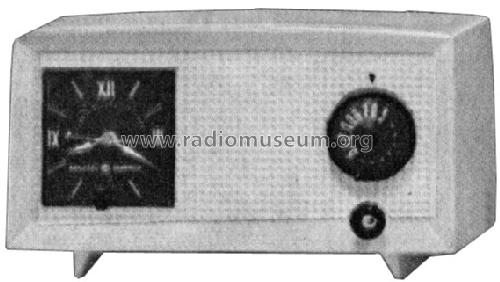

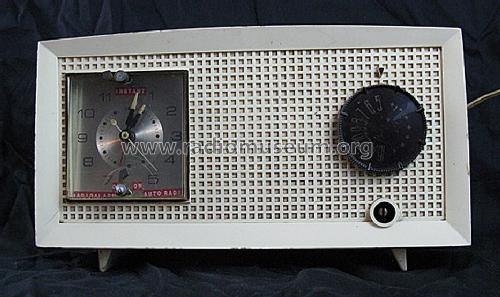

General Electric Model 895 is an AC Operated AM Superheterodyne Receiver with Electric Clock. Color = Ivory.

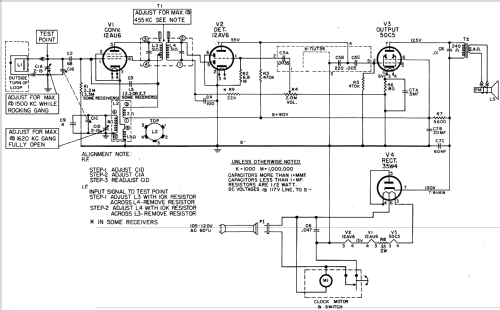

- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)

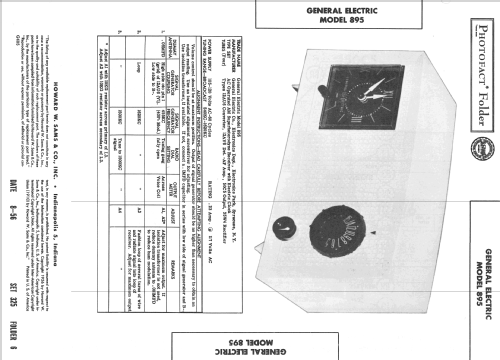

- Photofact Folder, Howard W. SAMS (Set 325 Folder 6 dated 8-56)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
