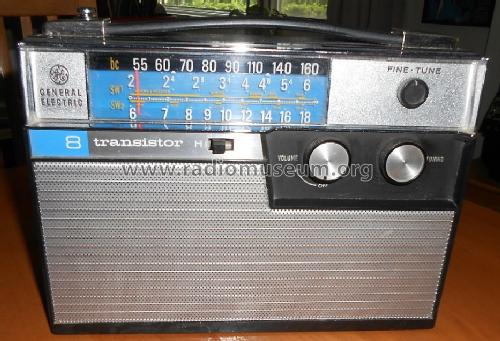

8 Transistor P-930A
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 238056
-
- Brand: Musaphonic
By Courtesy Of EBAY User: lppost
By Courtesy Of EBAY User: lppost
By Courtesy Of EBAY User: lppost
By Courtesy Of EBAY User: lppost
By Courtesy Of EBAY User: lppost
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor P-930A - General Electric Co. GE;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 165 x 81 mm / 9.3 x 6.5 x 3.2 inch
- Notes
-
General Electric Portable 3Band Radio Model 8 Transistor P930A.
Tuning Range:
AM 540 - 1600 kHz
SW1: 2 - 6 MHz
SW2: 6 - 12 MHz
Pull Up antenna, Carrying Handle.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
