- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81624
-
- Brand: Musaphonic

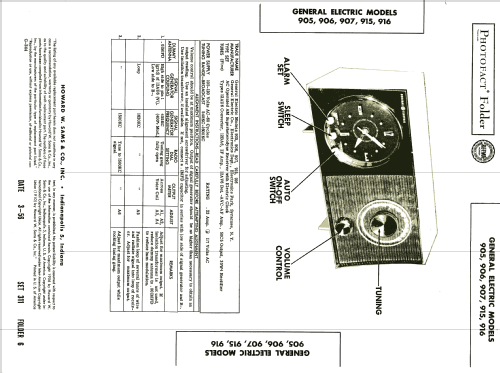

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V= 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.9 W (unknown quality)
- from Radiomuseum.org
- Model: 906 - General Electric Co. GE;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 11 x 6 x 5.25 inch / 279 x 152 x 133 mm
- Notes
-
Family of clock radio's consisting of model 905 (Charcoal with light gray front), 906 (Antique white with red front), 907 (White with white front), 915 (Charcoal with light gray front) and 916 (Antique white with red front).
General Electric model 906 is an AC Operated AM Superheterodyne Receiver with Electric Clock.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 311 Folder 6 Dated 3-56)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
