913-D

• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139670

• • Brand: Musaphonic

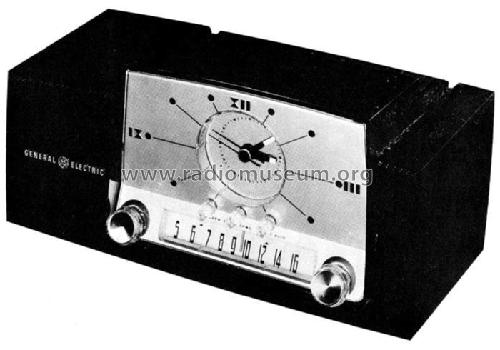

• Picture

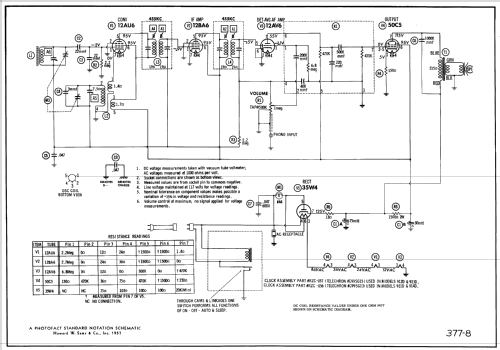

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AU6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 913-D - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.75 x 6.25 x 6 inch / 324 x 159 x 152 mm

• Notes

• The General Electric Model 913-D is an AC Operated 5 Tube AM Receiver with Electric Clock. The AM band frequency tuning range is 535 to 1620kHz. Uses #44 dial lamp.  Has built-in loop antenna and AC appliance recepticle on rear of cabinet which is controlled from the clock. Also has phonograph input on rear of cabinet.

  The 911, 912, 913, 914 family of General Electric clock radio's consist of the following models:

  Model	Manufacturing Years	V1 tube	Cabinet Color
  911	1955	12BE6	Mahogany
  912	1955	12BE6	Ivory
  913	1955	12BE6	Pink
  911-D	1956-1957	12AU6	Mahogany
  912-D	1956-1957	12AU6	Ivory
  913-D	1956-1957	12AU6	Pink
  914-D	1956-1957	12AU6	Turquoise

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 11-57, Set 377, Folder 8)

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 page 31)
