• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81616

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 920 - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 13.75 x 6.25 x 6.5 inch / 349 x 159 x 165 mm

• Notes

• Color = Mahogany. Has Phonograph input jack.

  AC Operated AM Superheterodyne Receiver With Electric Clock.

• Circuit diagram reference

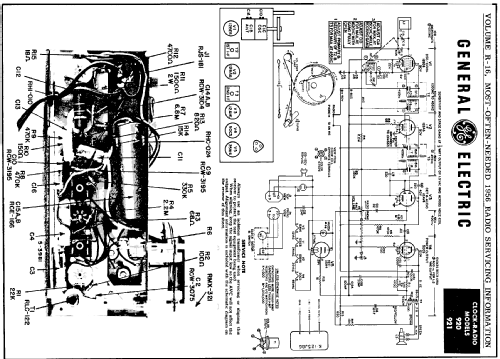

• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)

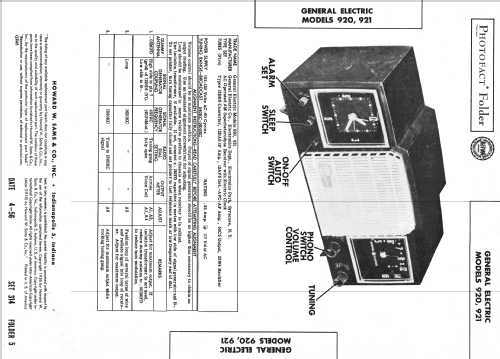

• Photofact Folder, Howard W. SAMS (Set 314 Folder 5)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
