- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 41999
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 25 or 60 cycles: 105 - 120 or 115; 125; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

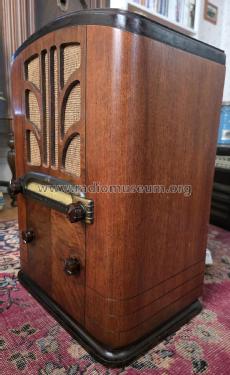

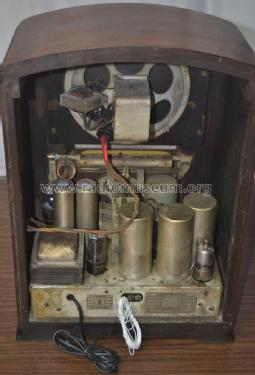

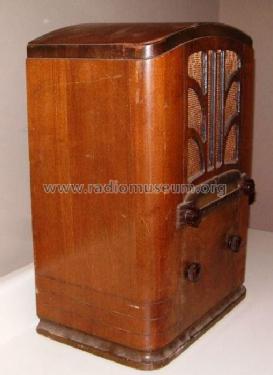

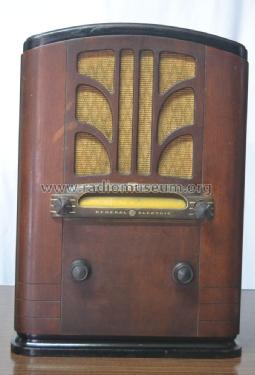

- Model: A-64 - General Electric Co. GE;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 356 x 502 x 253 mm / 14 x 19.8 x 10 inch
- Notes
-
The General Electric models A-64 and A-67 share the same schematic at Rider's 6-14 through 6-18 which show IF peak at 465 kc. They can have a 25 cycle (C) or 60 cycle mains transformer which came in two versions, one fix for 105-120 volts (A), the other for 105 to 250 volts with 4 tappings (V). The Broadcast band covers 540 - 1800 kc and the Short wave band 5.4 18 mc (foreign broadcasts).
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 117.)
- Literature/Schematics (3)
- General Electric Folder 750M-10-35 for 1935/1936.
