- Country
- Great Britain (UK)
- Manufacturer / Brand
- GEC, General Electric Co Ltd., GENALEX; London
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79228
-
- Brand: Gecophone
From an auction catalogue.

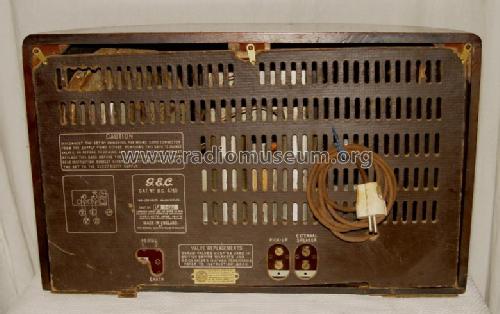

Foto Heinz Posingis

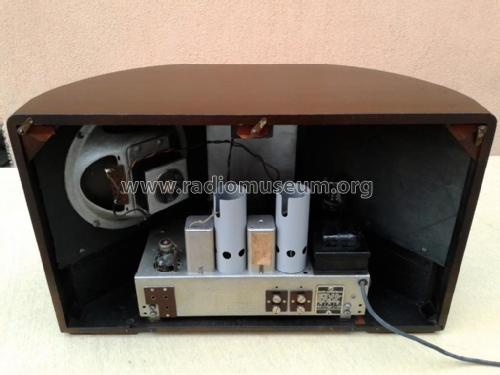

Foto Heinz Posingis
Foto Heinz Posingis
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BC4750 - GEC, General Electric Co Ltd.,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 22.5 x 13.75 x 9.25 inch / 572 x 349 x 235 mm
- Notes
-
An AC mains 3 band table radio housed in a wooden cabinet. Provision for gramophone pickup and external loudspeaker. Released October 1947. The GEC BC4750L model is similar with different mains voltage options.
- Source of data
- Radio! Radio!
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (919 dated Aug 6 1949 BC4750 BC4750L BC4758 BC4758R)
- Literature/Schematics (2)
- Radio And Television Servicing books (R&TVS) (GEC BC4750 BC4750L BC4758 BC4758R)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 443 models, 287 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from GEC, General Electric Co Ltd., GENALEX; London
Collections
The model is part of the collections of the following members.
Forum contributions about this model: GEC, General: BC4750
Threads: 1 | Posts: 1
Die Abbildung des matten Geräts entspricht nicht dem originalen Zustand. Ich habe genau dieses Gerät ersteigert. Beim Restaurieren bin ich im Innern auf große Mengen Schleifstaub gestoßen.
mit freundlichen Grüßen
Martin Storbeck
mit freundlichen Grüßen
Martin Storbeck
Martin Storbeck, 17.Feb.08
