- Country
- Great Britain (UK)
- Manufacturer / Brand
- GEC, General Electric Co Ltd., GENALEX; London
- Year
- 1950
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 94122
-
- Brand: Gecophone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BT5144 - GEC, General Electric Co Ltd.,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-

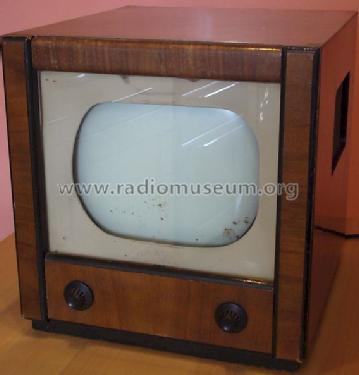

405 Lines black and white table TV with single channel London or Birmingham GB band I VHF TRF tuner. 12" Osram 6704A CRT.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (976/T8)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
