• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100357

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C-1451A - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.75 x 7 x 5.75 inch / 324 x 178 x 146 mm

• Notes

• The General Electric C-1451A is an AC operated 5 tube BC band clock radio.  The BC band range is 540 to 1600 kHz.  Has built-in loop antenna. Has Qty(1) PM 3.5" speaker and Qty(1) PM 4" speaker.  Cabinet color is Honey Beige.

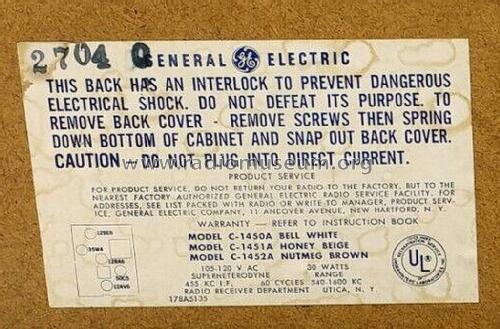

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  C-1450A	Bell White
  C-1451A	Honey Beige
  C-1452A	Nutmeg Brown



• Literature/Schematics (1)
• GE 1966/1967 FM/AM Clock and Table Radios catalog

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume VI 1965 to 1967 Pages 30 to 31)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
