- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 101553
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

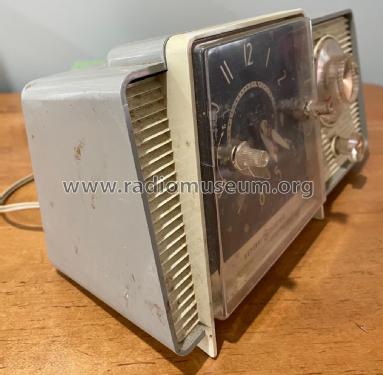

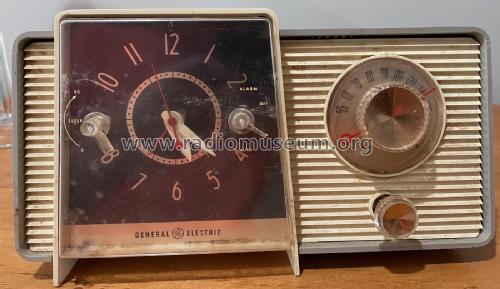

- Model: C405 - General Electric Co. GE;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 11.25 x 6.5 x 4.7 inch / 286 x 165 x 119 mm
- Notes
-
General Electric model C405 is an AC operated AM receiver with electric clock.
- Literature/Schematics (1)
- GE 1957/1958 Radios catalog
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 373 Folder 6 dated 10-57)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
