• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89432

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C410A - General Electric Co. GE;

• Shape

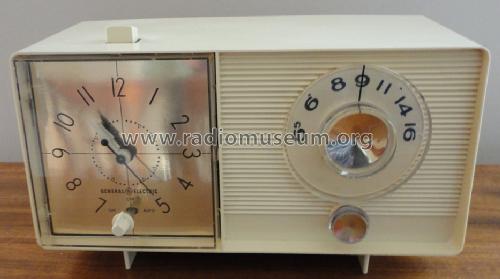

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 11 x 6 x 5 inch / 279 x 152 x 127 mm

• Notes

• The following models are identical except for cabinet color.

  Model Number	Cabinet Color
  C410A	White
  C411A	Blue



• Circuit diagram reference
• Beitman Radio Diagrams Vol. 23, 1963

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 637, Folder 7, June 1963)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
