• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 298850

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C425A - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

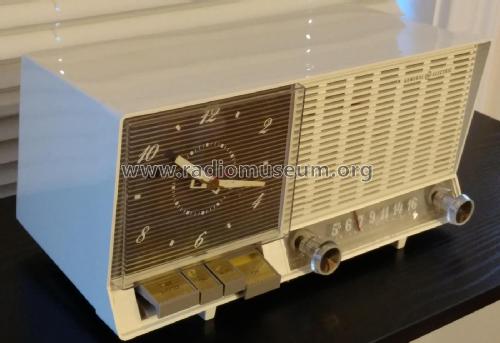

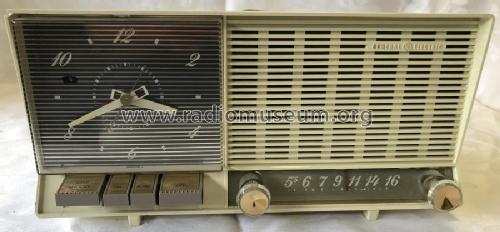

•  C425A (this model) is White in color. C426A is Rose Beige. C427A is Turquoise. Very similar design to the C450A. The most obvious difference is that the Alarm ON/OFF/SNOOZE buttons are located below the clock crystal in a keyboard-like configuration in the C425A. They are located on the top of the unit with the C450A.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Michael Walker. See "Data change" for further contributors.
