C4320A

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 344410
    • Brand: Musaphonic

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C4320A - General Electric Co. GE;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 11.5 x 3.25 x 6.25 inch / 292 x 83 x 159 mm
  • Notes

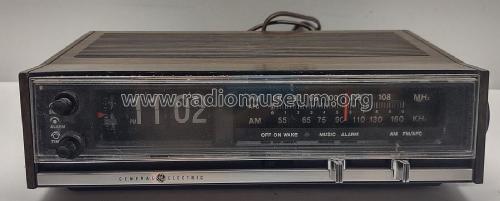

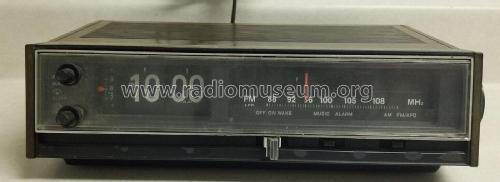

  • Tabletop AM/FM Alarm Clock Radio Model General Electric C4320A

    Tuning Range:
    AM 540 - 1600 kHz
    FM 88 - 108 MHz

    Flip Clock

    Walnut Grain Finish On Polystyrene

    Power Consumption 120VAC 60Hz - 15 Watts

    Made in Singapore



  • Net weight (2.2 lb = 1 kg)
  • 3 lb 1 oz (3.062 lb) / 1.390 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
