• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70373

• • Brand: Musaphonic

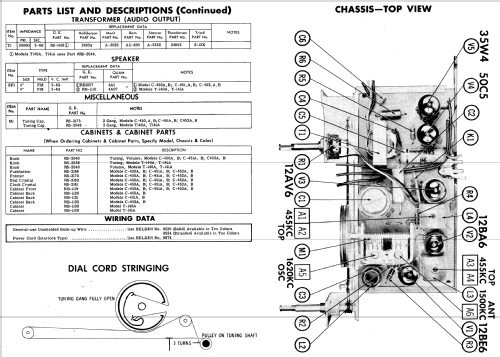

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: C451A - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.5 x 6 x 6 inch / 318 x 152 x 152 mm

• Notes

• Built in clock. Sams photofact set 479 folder 7 date 3-60 features the General Electric models C450A, C450B, C451A, C451B, C452A, C452B, T140A and T141A as the same schematic. T140A and T141A without clock.

  Tabletop AM Clock Radio Model General Electric C-451A

  Power Consumption 30 Watts
  Tuning Range:
  AM 540-1600 kHz

  Finish: Turquoise Color

  See also:
  General Electric AM Clock Radio Model C-450A - White Color
  General Electric AM Clock Radio Model C-452A - Gray Color

• Net weight (2.2 lb = 1 kg)
• 5 lb (5 lb 0 oz) / 2.270 kg

• Source of data
• Beitman Radio Diagrams, Vol. 20, 1960

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 479 folder 7 date 3-60)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
