• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143266

• • Brand: Musaphonic

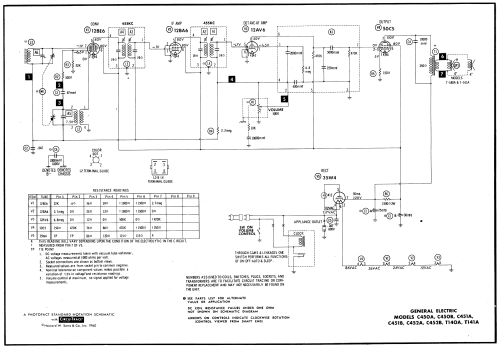

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org

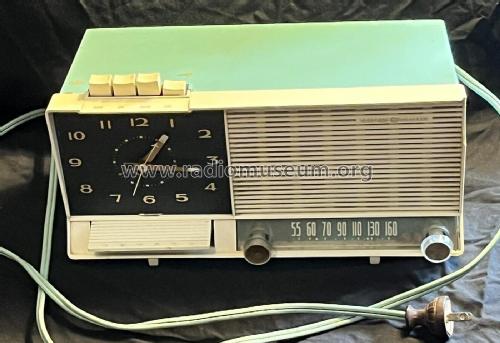

• Model: C451B - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Sams photofact set 479 folder 7 date 3-60 features the General Electric models C450A, C450B, C451A, C451B, C452A, C452B, T140A and T141A as the same schematic. T140A and T141A without clock.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 479 folder 7 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
