C550DXX

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 256573
    • Brand: Musaphonic

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50 cycles, 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C550DXX - General Electric Co. GE;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 200 x 80 x 145 mm / 7.9 x 3.1 x 5.7 inch
  • Notes

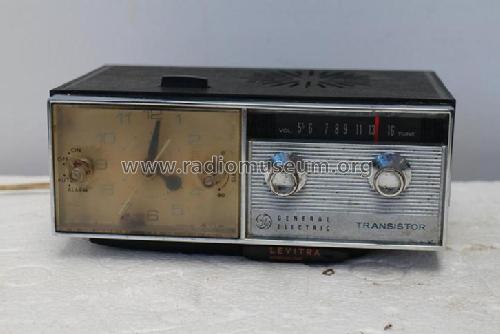

  • The General Electric C550DXX is an AC operated AM band clock radio.  AM band tuning range is 540-1600kHz.

    This is an export model.

  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
