E-62

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 42037
    • Brand: Musaphonic

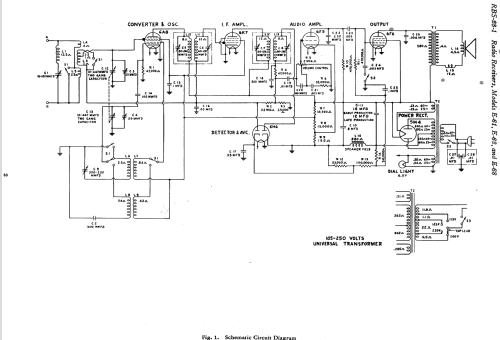

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 or 115; 125; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: E-62 - General Electric Co. GE;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 17.125 x 9.675 x 7.5 inch / 435 x 246 x 191 mm
  • Notes
  • The General Electric models E-61, E-62 and E-68 share the same schematic at Rider's 7-9 through 7-12 which show IF peak at 465 kc. They can have a 25 cycle (C) or 60 cycle mains transformer which came in two versions, one fix for 105-120 volts (A), the other for 105 to 250 volts with 4 tappings (V). The Broadcast band covers 540 - 1750 kc and the Short wave band 2.2 - 7 mc.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
