EB262g Ch= TU105-1 + T7N-B
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139413
-
- Brand: Musaphonic
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: EB262g Ch= TU105-1 + T7N-B - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
- Chassis TU105-1 is an AM/FM Stereo Receiver used with Power Amplifier T7N-B in General Electric Model EB262g.
- Literature/Schematics (1)

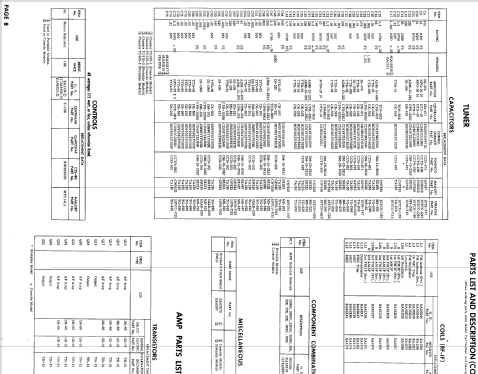

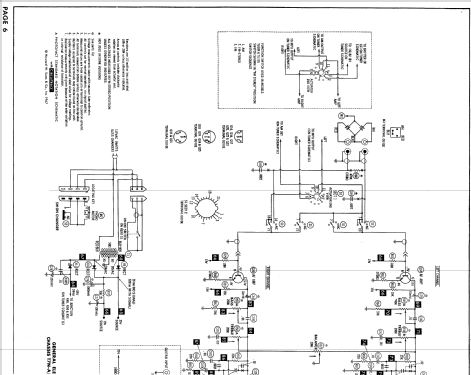

- Photofact Folder, Howard W. SAMS (Date 9-67, Set 909, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
