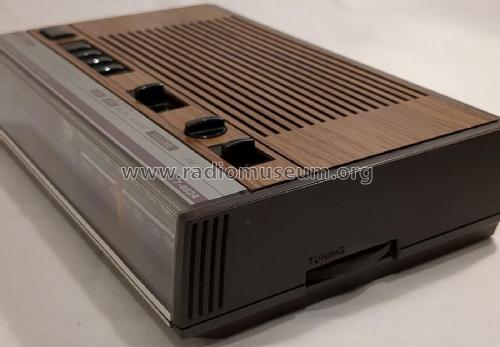

Electronic Digital FM/AM Clock Radio 7-4624B "Space Saver"

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1983 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 285110
    • Brand: Musaphonic

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / AC: 60Hz, 120V and Battery: (Clock backup) 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Electronic Digital FM/AM Clock Radio 7-4624B "Space Saver" - General Electric Co. GE;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 235 x 55 x 147 mm / 9.3 x 2.2 x 5.8 inch
  • Notes

  • 9V battery for clock backup only.

    Power consumption : 4W

    Made in Malaysia

    IC TMS3450 & T916B

  • Net weight (2.2 lb = 1 kg)
  • 0.8 kg / 1 lb 12.2 oz (1.762 lb)
