- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42058
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: F-75 - General Electric Co. GE;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25.875 x 40 x 12.25 inch / 657 x 1016 x 311 mm
- Notes
-
Tuning Range: 540 to 18,000 kc.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition

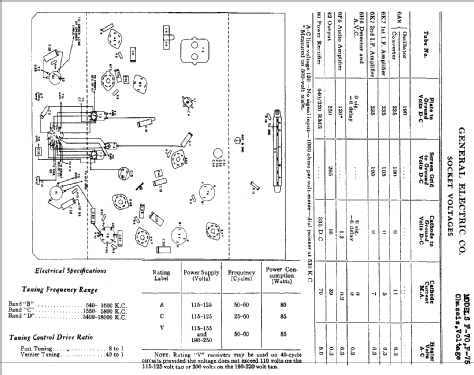

- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (3)
- General Electric Folder 1000M 9-37 for 1938.
