F-665

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 202249
    • Brand: Musaphonic

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Line (AC, UC or DC not known) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: F-665 - General Electric Co. GE;
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 12 x 24 x 26 inch / 305 x 610 x 660 mm
  • Notes

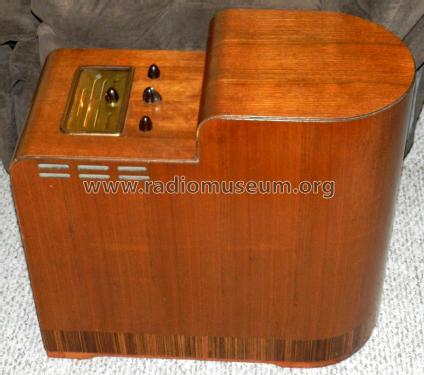

  • GE F-665 - Arm chair type; modernistic tier design; striped walnut with zebra inlays; new louver dial with each scale lighted from above to make the large, clear numerals and markings stand out in relief; visual volume and tone indicators.

    GE F-665 - Sessel-Super in modern abgestufter Form mit Nussbaum-Funier und Zebra-Einlagen. Neuartige Bänder-Skala, von oben beleuchtet, so daß die großen, klaren Zahlen und Markierungen plastisch hervortreten. Optische Anzeige von Lautstärke und Klangfarbe.

    Tuning Range: 540 to 1720 kc, 2400 to 7000 kc.

    Rider does not have a separate schematic for Model F-665.  However, the schematic for model F-66 (already in Rmorg) will suffice.

  • Literature/Schematics (3)
  • General Electric Folder 1000M 9-37 for 1938.
  • Literature/Schematics (4)
  • The Spectrum Monitor, Apr 2020 "The GE Chairside; Model F-665", Rich Post
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
