• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95685

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF121 AF125 AF126 AF126 AC151 AC151 AC153 AC153

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

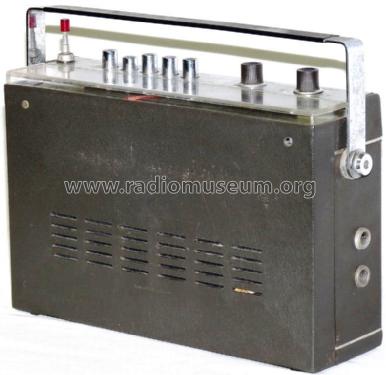

• Model: Flora KPR100 - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 170 x 77 mm / 10.2 x 6.7 x 3 inch

• Notes
• KPR 100 with similar cabinet and chassis, but different scale as Kuba (Germany) Florenz.
  Manufactured by Kuba-Imperial, Germany, Mit Autohalterung KA152 auch an 6/12 V Bordnetz betreibbar.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
