- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42092
-
- Brand: Musaphonic

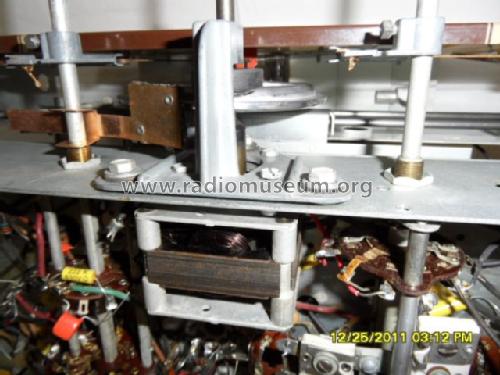

Photo courtesy Rodney Boleyn.
Photo courtesy Rodney Boleyn.
GE Service Notes RGS-105
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: G106 - General Electric Co. GE;
- Shape
- Console with any shape - in general
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Other Models
-
Here you find 2916 models, 2140 with images and 2042 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Collections
The model G106 is part of the collections of the following members.
Forum contributions about this model: General Electric Co.: G106
Threads: 1 | Posts: 1
The GE G-106 has motor tuning with 13 push-buttons for station selection, plus off, which turns off the radio by tuning to the extreme high frequency end of the range.
It also has a 24 hour timer, which permits the radio, every 15 minutes, to either take no action, go to one of 5 stations chosen from among those set on the push-buttons, or turn itself off. You'll never miss a scheduled radio program again!
Scott Robinson, 24.Aug.09
