- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124396
-
- Brand: Musaphonic
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115-125 Volt
- Loudspeaker

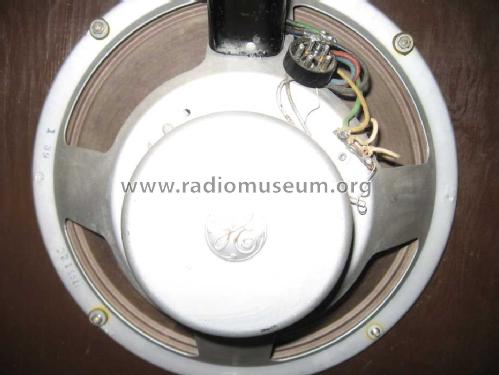

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G655 - General Electric Co. GE;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 31 x 34 x 11.5 inch / 787 x 864 x 292 mm
- Notes
-
Riders error:
Schematic is the same as for the G-64, both are located in Riders volume 10, G.E. page 10-15, where Riders named it G-65, same in the index. But in the schematic and the Service Data it is called G-655!
- Net weight (2.2 lb = 1 kg)
- 45 lb 0 oz (45 lb) / 20.430 kg
- Mentioned in
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- see G-65
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (ad January 1939 last page)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
